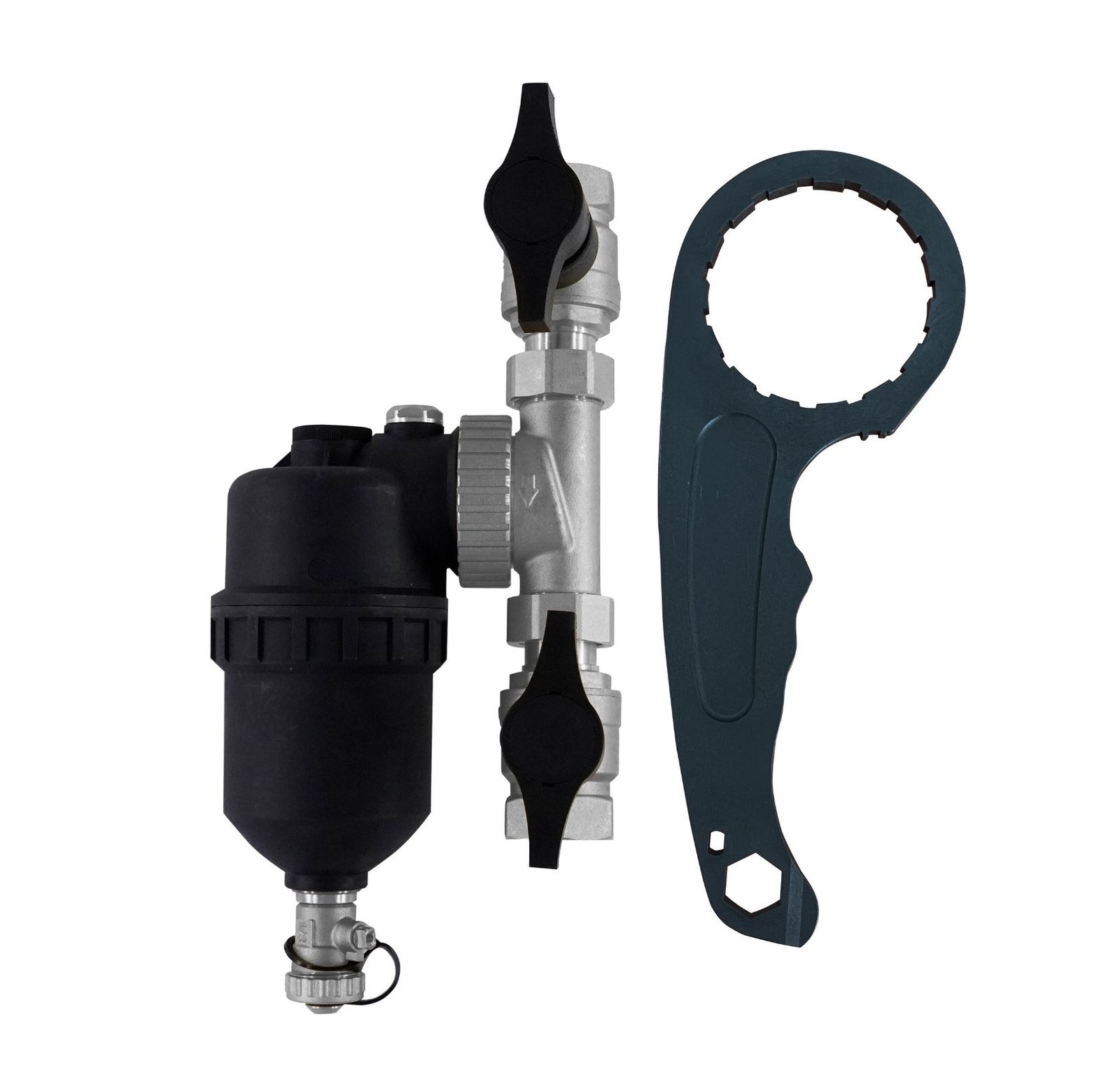

This 28mm Magnetic Filter is an effective solution designed to connect to the return leg of fluid-based central heating systems. Specifically, it provides a highly reliable method to identify and capture various types of magnetite and non-ferrous debris, such as iron, nickel, and cobalt particles in the water. Furthermore, thanks to its innovative triple-action vortex magnetic filtration system utilizing a rare neodymium 12,000 gauss magnet, you significantly extend the lifetime of your system by preventing costly and avoidable system breakdowns.

Therefore, this 28mm Magnetic Filter works perfectly for protecting a wide range of central heating systems, whether you are retrofitting it into existing systems or replacing the boiler. Additionally, it easily handles demanding applications while helping to maintain fuel efficiency and saving energy by up to 6% per annum.

The filter features a compact design and a durable construction made from glass-filled reinforced plastic nylon, utilizing high-temperature EPDM seals. Moreover, the inclusion of isolating flat face ball valves with 22mm compression fittings facilitates maintenance and installation processes, ensuring convenience and ease of operation. As a result, this robust build makes it fully reliable for providing consistent protection for the boiler system and saving maintenance costs.

Key Features & Benefits of 28mm Magnetic Filter:

• Triple-Action Filtration: The unit incorporates a rare neodymium 12,000 gauss magnet to identify and capture various types of magnetite and non-ferrous debris. Consequently, you achieve maximum protection against magnetic and non-magnetic particles, including iron, nickel, and cobalt.

• Easy Installation & Servicing: The compact design includes isolating flat face ball valves with 22mm compression fittings. For example, if you need to perform maintenance, these components facilitate convenience and ease of operation without draining the entire system.

• Energy & Cost Savings: The dual filter mechanism maintains fuel efficiency. Importantly, it saves energy by up to 6% per annum and saves maintenance costs.

• Durable Construction: The body is manufactured from glass-filled reinforced plastic nylon with high-temperature EPDM seals. In particular, this robust build handles a maximum working pressure of 5 bar and a maximum working temperature of 120 Deg C, effectively providing consistent protection for the boiler system.

Technical Specifications:

• Model: ZL-2581

• Product Type: Magnetic Filter / Dual filter

• Connection Size: 28mm compression fittings

• Magnet Strength: Rare neodymium 12,000 gauss magnet

• Body Material: Glass filled reinforced plastic nylon

• Seals: High temperature EPDM seals

• Maximum Working Pressure: 5 bar

• Maximum Working Temperature: 120 Deg C

• Maximum Flow Rate: 50 litre per min
