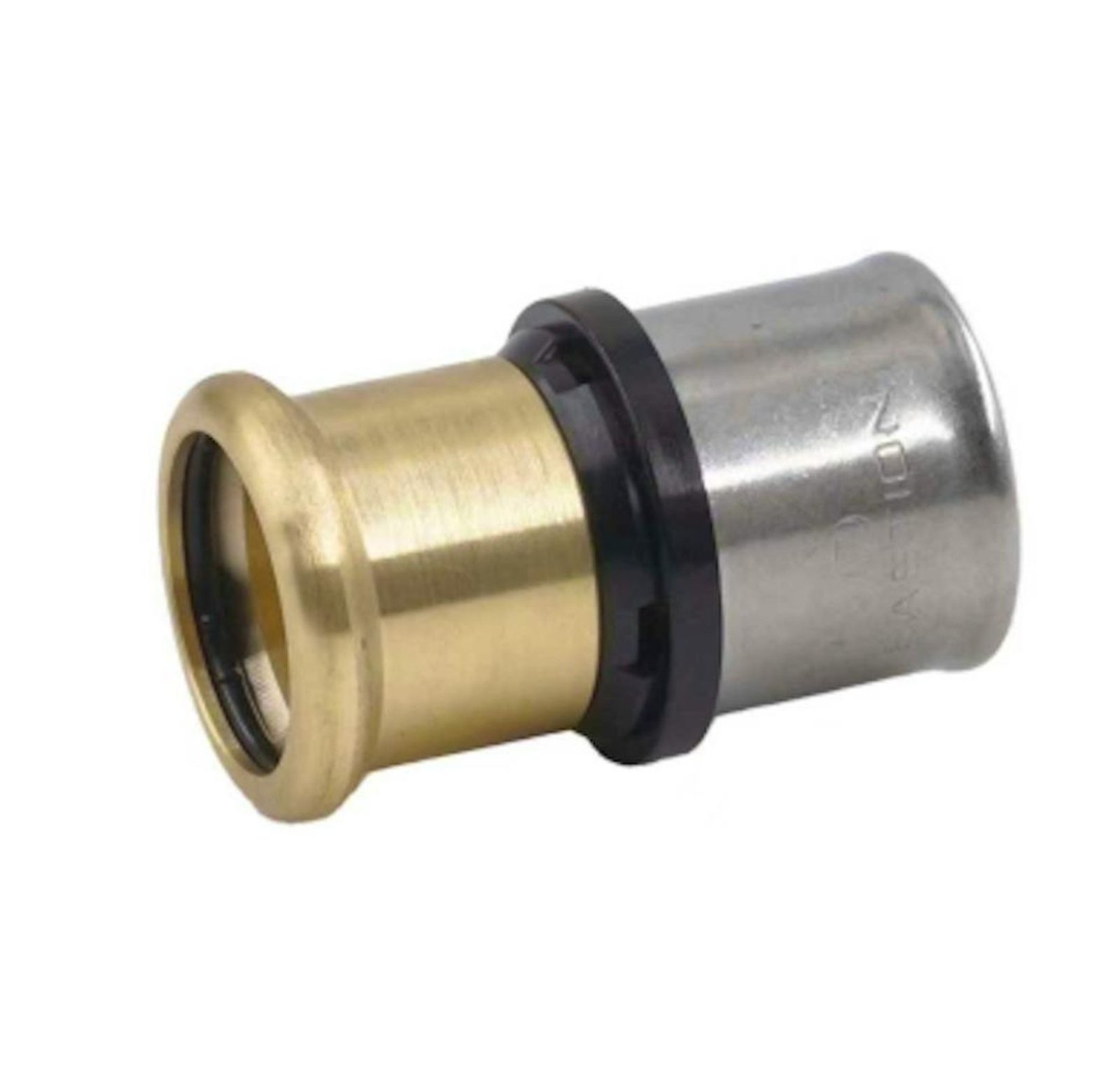

This Bastion MLCP Press-fit Adaptor (M-Profile) 32mm x 28mm is a critical component for seamlessly integrating multilayer composite pipes with standard 28mm copper systems. Specifically designed to provide a reliable, secure M-profile connection in domestic and commercial plumbing, it is capable of withstanding high working temperatures and pressures. Furthermore, you can easily install this adaptor using a press tool, creating a permanent, high-strength joint that entirely eliminates the need for hot works.
Ideally matched with Multilayer pipes and M-profile copper press systems, this fitting simplifies and accelerates the assembly process. Bastion MLCP Press-fit Adaptor (M-Profile) 32mm x 28mm additionally, its advanced design features a CW617N brass body and a durable stainless steel sleeve. The adaptor incorporates a triple O-ring system combined with a unique profile to deliver a guaranteed hydraulic and mechanical seal. As a result, this robust build makes it completely reliable for modern piping systems and proudly carries WRAS approval.
Key Features & Benefits
-
Hot-Work Free Installation (Multi-Profile Compatibility): The design utilizes a standard press jaw to securely compress the stainless steel sleeve. While specifically optimized for M-profile jaws, it is also fully compatible with U, B, TH, and H profiles. Consequently, you achieve a rock-solid, secure joint while eliminating the fire risks, mess, and curing time associated with traditional soldering or hot works.
-
Leak Before Press & Visual Checks: The fitting includes visual windows to confirm the pipe is fully inserted before pressing. In particular, if an installer forgets to press the fitting, the connection will intentionally leak during testing, making it easy to identify and correct immediately.
-
Advanced Corrosion Protection: A specially engineered black plastic ring secures the sleeve to the fitting. Specifically, this ring prevents dielectric contact between the aluminium layer of the pipe and the brass body of the fitting, minimising any risk of long-term corrosion.
-
Triple O-Ring Sealing Guarantee: The joint’s sealing relies on a unique profile combined with a 3 O-ring system. Ultimately, this reliable seal can be tested up to 110°C, ensuring exceptional performance even in demanding applications.
Technical Specifications
-
Product Type: Press-fit adapter to copper press (M-profile)
-
Size: 32mm x 28mm
-
Connection Type: Press-Fit (Compatible with U, B, TH, H profiles)
-
Material: CW617N Brass, Stainless Steel Sleeve, Black Plastic Ring
-
Approvals: WRAS Approved Product
-
Properties: Leak Before Press, High-Strength Joint, Corrosion Protected
