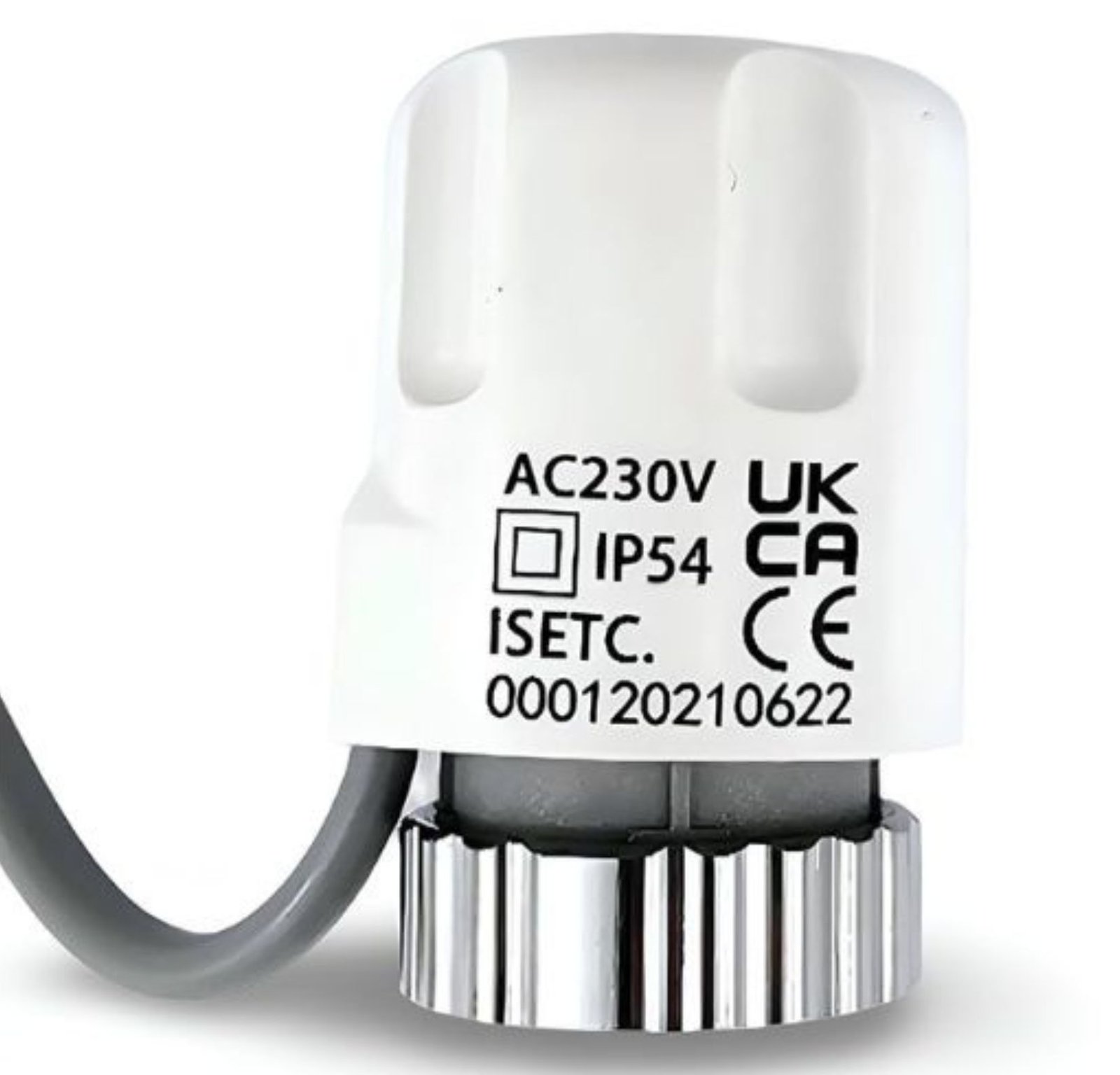

This Bastion 230V Actuator connects directly with your underfloor heating workflow as it efficiently and safely controls the flow of water through your manifold. Specifically, it delivers a highly responsive and precise zone-by-zone temperature regulation for underfloor heating networks when you link it to a room thermostat. Furthermore, thanks to its normally closed configuration and universal M30 x 1.5mm connection, you significantly speed up installation, ensure excellent system compatibility, and eliminate integration issues directly on site.

Therefore, this 230V Actuator works perfectly to manage water flow directly on underfloor heating manifolds. Additionally, it easily handles demanding multi-zone applications, operates smoothly with standard wiring centres, and effectively withstands continuous daily operation after setup.

The Bastion 230V Actuator features a robust, compact, and energy-efficient construction. Moreover, the design incorporates a clear visual position indicator to facilitate an efficient system diagnostic. As a result, this reliable build drives high performance in temperature regulation and guarantees that the manifold valves open and close accurately during operation.

Key Features & Benefits:

• Universal M30 x 1.5mm Thread: The standard threaded ring renders the actuator highly adaptable for most standard manifolds. Importantly, it completely prevents compatibility issues during application, protecting your workflow and reducing installation time.

• Normally Closed (NC) Operation: The internal wax element combines energy efficiency with reliable flow control. Consequently, you achieve a reliable, long-term shut-off that seamlessly adapts to thermal demands within the underfloor heating network.

• Visual Position Indicator: The product effortlessly supports fast system checks by featuring a clear open/closed visual gauge. Besides that, the system exhibits excellent visibility to facilitate a highly efficient maintenance process without needing electrical testing tools.

• 230V AC Integration: The actuator runs on a standard 230V supply for straightforward electrical wiring. Ultimately, this effectively accommodates standard heating control systems and securely links your thermostats to the manifold.

• Compact & Space-Saving Design: The internal mechanisms are packaged in a highly streamlined housing. For example, this allows for highly efficient deployment across large manifolds with multiple loops, ensuring you have enough physical space to mount several actuators side-by-side.

Technical Specifications:

• Product Type: Thermal Actuator

• Brand: Bastion

• Voltage: 230V AC

• Operating State: Normally Closed (NC)

• Connection Size: M30 x 1.5mm Thread

• Power Consumption: Energy efficient (Typically 2W)

• Feature: Visual Open/Close Position Indicator

• Application: Flow control for underfloor heating manifolds and thermostatic radiator valves
