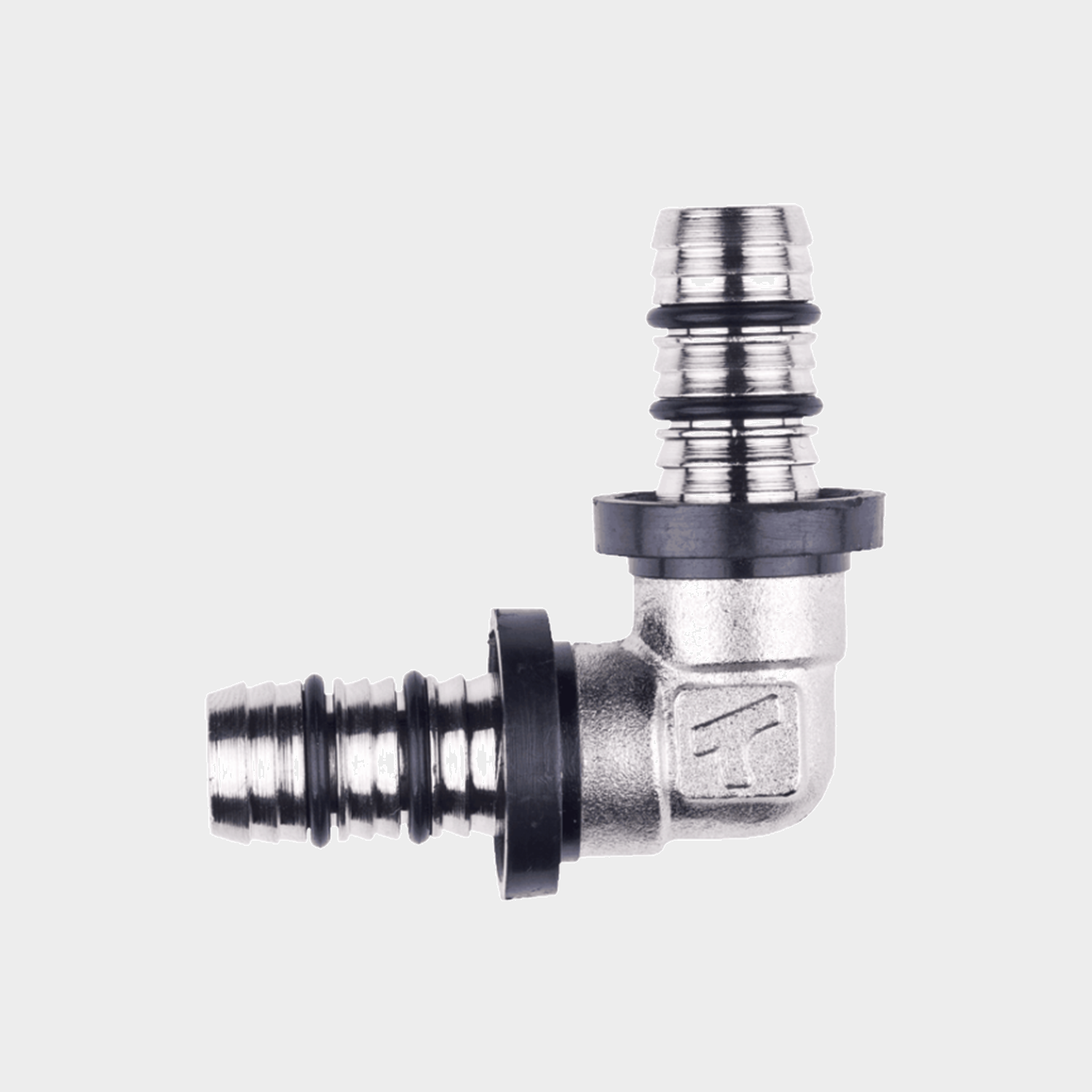

The male elbow is constructed from pressed brass (CW617) with a nickel-plated finish on surfaces not exposed to water, ensuring a full anti-diffusion barrier. It features a stainless steel clamping ring and an EPDM O-ring gasket for reliable sealing and durability.

This elbow is designed for use in various applications, including hot and cold tap water systems, central heating (such as radiator connections), surface heating systems (like underfloor and wall installations), and ice water. The connection is established by pressing the pipe into the fitting’s profile using a specialized tool with U-type inserts. The tightness of the connection is ensured by two integrated O-rings, which provide a secure and leak-proof seal. Additionally, this male elbow can be installed in both floor grooves and wall furrows, offering versatility and adaptability for different installation environments.
