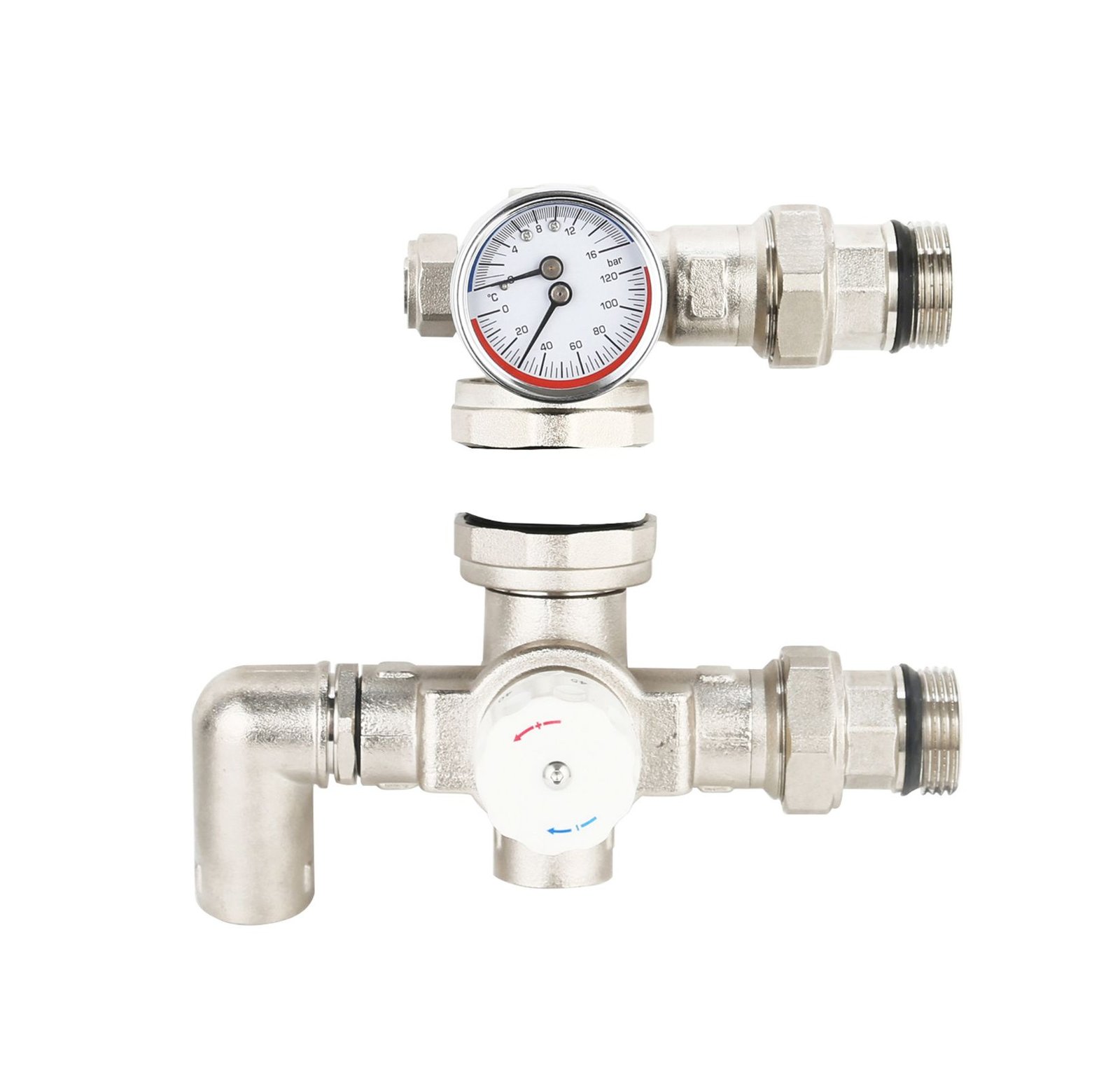

This Thermostatic Blending Valve connects internal heating pipework by efficiently controlling the flow temperature of water. Specifically, it provides a highly durable and precise transfer of heating mediums to underfloor heating manifolds on 210mm centers. Furthermore, thanks to the innovative bolt-on design, you significantly speed up installation by providing a quick and simple system to install directly on site.
Therefore, this Thermostatic blending valve works perfectly as the core of the control system for underfloor heating (UFH) networks. Additionally, it easily handles demanding applications, seamlessly mixing hot water from the boiler and supplying it back to the pipework at a correct, lower temperature than traditional radiator systems.
The unit features a robust construction alongside standardized water supply components, flat gaskets, and union connections. Moreover, the reliable material and build allow for safe continuous operation under a maximum static pressure of 10 bar and a maximum temperature of 85°C. As a result, this dependable construction makes it fully reliable for long-term and trouble-free residential and commercial installations.
Key Features & Benefits:
-
Flexible Temperature Control: The valve design allows the water supply temperature to be continuously adjusted between 35°C and 60°C according to the structure of the floor. Consequently, you achieve optimal thermal comfort by utilizing the convenient 45°C factory pre-set.
-
Fast Bolt-On Installation: The system is designed to work seamlessly with manifolds of all types on standard 210mm centers. For example, by utilizing the bolt-on unit design, this effectively reduces assembly time and simplifies the entire plumbing setup.
-
Safe Water Blending: The thermostatic blending valve smoothly and precisely mixes hot water from the boiler with the cooler return water. Importantly, this completely guarantees the correct temperature for the underfloor heating pipework and prevents thermal damage.
-
High Pressure & Heat Stability: The mixing assembly provides excellent structural integrity, withstanding a maximum static pressure of up to 10 bar. Besides that, the system easily handles water temperatures reaching up to 85°C.
-
Comprehensive Connection Kit: The module is supplied with essential water supply and mixed water system components and dedicated flat gaskets. Ultimately, this allows you to create a highly sealed fit that minimizes the risk of any leakage across the system.
Technical Specifications:
-
Model: ZL-2536
-
Product Type: Thermostatic Blending Valve / Underfloor Heating Control Pack
-
Compatibility: Designed for manifolds on 210mm centers
-
Max Static Pressure: 10 bar
-
Max Temperature: 85°C
-
Adjustable Control Range: 35°C to 60°C
-
Factory Pre-set: 45°C
-
Application: Underfloor Heating (UFH) Systems
